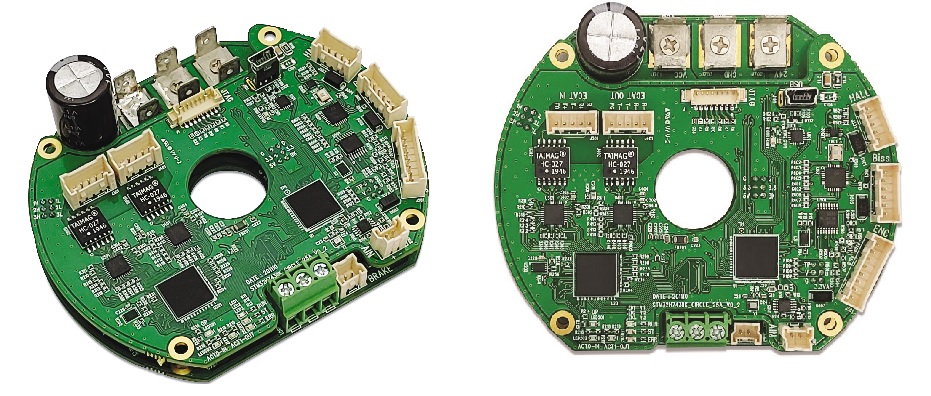

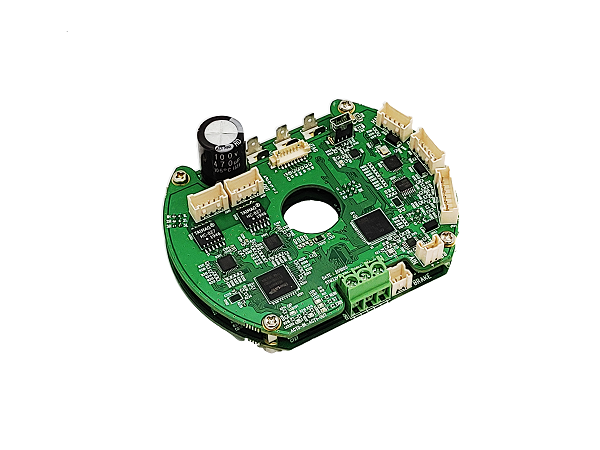

Robot Joint Servo Drive 48V, 25A

  • Home
  • Product
  • Robot Joint Servo Drive
  • 48V, 25A

 WEC-D048/25-FS0025-E







Specifications

WELCON Robot Joint Servo Drive 48V, 18A의 표로 Size, Drivable Motors, Input Voltage, Continuous Current, Peak Current, Peak Current, Communication Interface, Position Sensores의 항목에 대해 자세히 안내하는 표입니다.
Size / Weight Outer 100㎜, Inner 20㎜ / 88g
Drivable Motors DC / BLDC / PMSM (Rotary or Linear Type)
Input Voltage 12~48VDC (H/W Limit : 10 ~ 60VDC)
Continuous Current 25A
Peak Current 58A
Control Mode Current (Torque) / Velocity / Position
Communication Interface EtherCAT, USB
Position Sensors

Incremental Encoder

Separated Digital Hall Sensor
BiSS/SSI Interface Encoder

Order Product Name

WELCON Mini Servo Drive 48V, 1A의 표로 Size, Drivable Motors, Input Voltage, Continuous Current, Peak Current, Peak Current, Communication Interface, Position Sensores의 항목에 대해 자세히 안내하는 표입니다.
WEC-D048/25-FS0025-E EtherCAT
